Solapur Helios Series Ultraviolet Systems (2GPM)
Premium Chemical-Free UV Disinfection for Homes, Businesses, and Commercial Applications
The Solapur Helios Series Ultraviolet Systems by Applied Membranes offer state-of-the-art UV water disinfection that is safe, chemical-free, and effective for residential, commercial, and light industrial use. Designed for point-of-use and point-of-entry installations, these systems neutralize 99.99% of bacteria, viruses, and protozoan cysts, ensuring safe, clean water at flow rates up to 21 gallons per minute.
Whether you’re protecting your family at home or ensuring microbiological control for commercial operations, the Solapur Helios system delivers reliable, high-performance purification with easy maintenance and advanced monitoring features.
The Science of Clean Water with Solapur Helios UV Technology
Water that looks clear can still carry harmful microorganisms like E. coli, Cryptosporidium, and Giardia, especially in private wells or aging municipal systems. The Solapur Helios Series uses high-intensity UV-C light at the germicidal wavelength of 254 nanometers to penetrate microbial cell walls, disrupting their DNA and rendering them harmless without the use of chemicals.
Unlike chlorine-based treatments, UV disinfection produces no harmful by-products, leaves no taste or odor, and avoids the risks of developing resistant strains of bacteria or viruses. With visual lamp-on indicators, audible alerts, and an integrated UV lamp countdown timer, Helios systems ensure you always know your water is protected.
Why Choose the Solapur Helios Series Ultraviolet Systems?
-
99.99% proven destruction of bacteria, viruses, and protozoa at rated flow
-
Chemical-free disinfection with no taste or odor
-
Zero disinfection by-products (DBPs) or residual chemicals
-
Eco-friendly, energy-efficient operation
-
No resistance like chlorine or antibiotics
-
No regrowth of microbes once treated
-
Audible and visual lamp change reminders & lamp fail alarm
-
Compact design saves space and fits any application
-
Easy maintenance: simply change the UV bulb once per year
-
No moving parts for maximum reliability
-

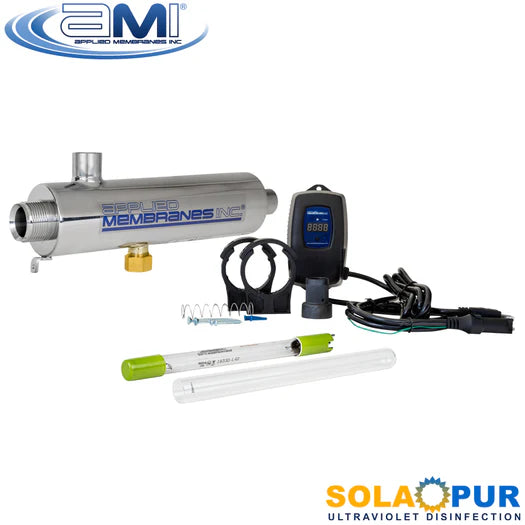

Fully assembled system includes chamber, lamp, sleeve, controller, power supply, mounting clamps, and manual
Built-in System Features
| Feature | Details |
|---|---|
| UV Lamp Countdown Timer | Tracks operating hours for timely lamp replacement |
| Total Elapsed Running Time | 4-digit LED display for system monitoring |
| Visual Sight Port | Lamp-on verification at a glance |
| Audible & Visual Reminders | Alerts for lamp changes and failures |
| Stainless Steel Reactor Chamber | Corrosion-resistant, 304-grade for durability |
| Bayonet-Style Lamp Connector | Tool-free, easy bulb replacement |
| Constant Current Controller | Protects lamp performance in splash-proof housing |
| Fully Potted Ballast | Prevents water damage to electrical components |
Flow Rates & Applications
| Flow Rate | Ideal Application |
|---|---|
| 2 GPM | Single tap, RV, marine, or ice maker protection |
| 3 GPM | Small residential POU systems |
| 6 GPM | Whole-home systems up to 1–2 bathrooms |
| 11 GPM | Larger homes or small commercial facilities |
| 15 GPM | High-demand residential or mid-size commercial systems |
| 21 GPM | Light industrial use, commercial kitchens, livestock, or multi-unit properties |
Common Installations Include:
-
Homes, condos, cottages
-
Restaurants, offices, schools
-
Healthcare and eldercare facilities
-
Dental practices and clinics
-
Rainwater harvesting systems
-
Dairy farms and livestock operations
-
Camps, RVs, boats
-
Manufacturing facilities
Replacement Lamps & Quartz Sleeves Chart
| UV System Model | Replacement Lamp | Quartz Sleeve | Combo Pack |
|---|---|---|---|
| UV-SPH-2 | UV-SPH-2-L | UV-SPH-2SLV | UV-SPH-2-LSP |
| UV-SPH-3 | UV-SPH-3-L | UV-SPH-3SLV | UV-SPH-3-LSP |
| UV-SPH-6 | UV-SPH-6-L | UV-SPH-6SLV | UV-SPH-6-LSP |
| UV-SPH-11 | UV-SPH-11-L | UV-SPH-11SLV | UV-SPH-11-LSP |
| UV-SPH-15 | UV-SPH-15-L | UV-SPH-15SLV | UV-SPH-15-LSP |
| UV-SPH-21 | UV-SPH-21-L | UV-SPH-21SLV | UV-SPH-21-LSP |
Maintenance Tip:
Replace your UV lamp annually and inspect/clean or replace the quartz sleeve to ensure maximum UV transmittance and system performance.
Replacement Controllers & Power Supplies
| Controller Model | Voltage | Replacement Power Supply |
|---|---|---|
| UV-CH-US | 110V (North America) | UV-CH-US |
| UV-CH-EU | 230V (Europe) | UV-CH-EU |
| UV-CH-UK | 230V (UK) | UV-CH-UK |
| UV-CH-AU | 230V (Australia) | UV-CH-AU |
Comprehensive Specifications
| Feature | Details |
|---|---|
| Disinfection Rate | 99.99% microbial reduction at rated flow |
| Flow Rates Available | 2 – 21 GPM |
| Reactor Material | 304 Stainless Steel |
| UV Lamp Type | High-output, low-pressure mercury UV-C |
| Lamp Life | ~9,000 hours (approx. 1 year) |
| System Monitoring | Lamp countdown timer, LED display, lamp fail alarm |
| Power Requirements | 110–230V (Model dependent) |
| Installation | Point-of-use or point-of-entry |
| Warranty | Manufacturer’s warranty included |
| Maintenance | Annual lamp and sleeve replacement recommended |
Installation & FAQs
Do I need a professional to install the Solapur Helios system?
No, the system is designed for easy DIY installation, but professional installation is recommended for larger point-of-entry applications.
Can this system be used with rainwater or well water?
Yes, the Helios Series is perfect for non-chlorinated water sources. Pre-filtration is recommended to remove particulates that can shield microorganisms.
What happens if the lamp fails?
The audible and visual alarm will notify you immediately. You can also visually confirm lamp operation through the sight port.
How often should I replace the lamp?
Every 9,000 hours, or about once per year under continuous use.
Why Choose the Solapur Helios Ultraviolet System?
The Solapur Helios UV Series offers high-performance, chemical-free water disinfection for homes, businesses, and commercial spaces. With powerful microbial protection, energy efficiency, and minimal maintenance, you get the confidence of safe, clean water throughout your entire system. Easy to install and backed by reliable engineering, this system is your ideal defense against waterborne pathogens.
Drink better. Feel better. Live better with Solapur Helios UV.
Order yours today and experience chemical-free, eco-friendly water disinfection that keeps your home or business safe and secure!
LITERATURE
Solapur Helios Series UV Systems Brochure
Installation & Operation Manual for Solapur Helios Series UV Systems
